Plate Roling Machine

Name: Plate Roling Machine
Brand: VICTORY MACHINERY CORPORATION
Price: 5500000 INR
Availability: InStock

Price 5500000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Plate Roling Machine Specification

Capacity
Up to 16 mm thickness x 2000 mm width

Raw Material
Mild Steel

Output
Sheet/Plate

Machine Type
Mechanical Type

Bending Speed
6 m/min

Color
Blue

Automation
Semi Automatic

Bend Radius
50 mm Minimum

Product Type
Plate Rolling Machine

Production Capacity
4-6 Ton per day

Dimension (L*W*H)
2500 x 1100 x 1200 mm

Place of Origin
India

Bending Angle
Up to 180 Degrees

Usage
Industrial Plate Bending

Bending Strength
High

Weight
1600 kg

Motor Speed
1440 RPM

Phase
Three Phase

Power
7.5 HP

Condition
NEW

Voltage
415 V

Plate Roling Machine Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA), Cheque

Delivery Time
10 Days

Main Export Market(s)
Middle East, Asia, Africa

Main Domestic Market
All India

About Plate Roling Machine

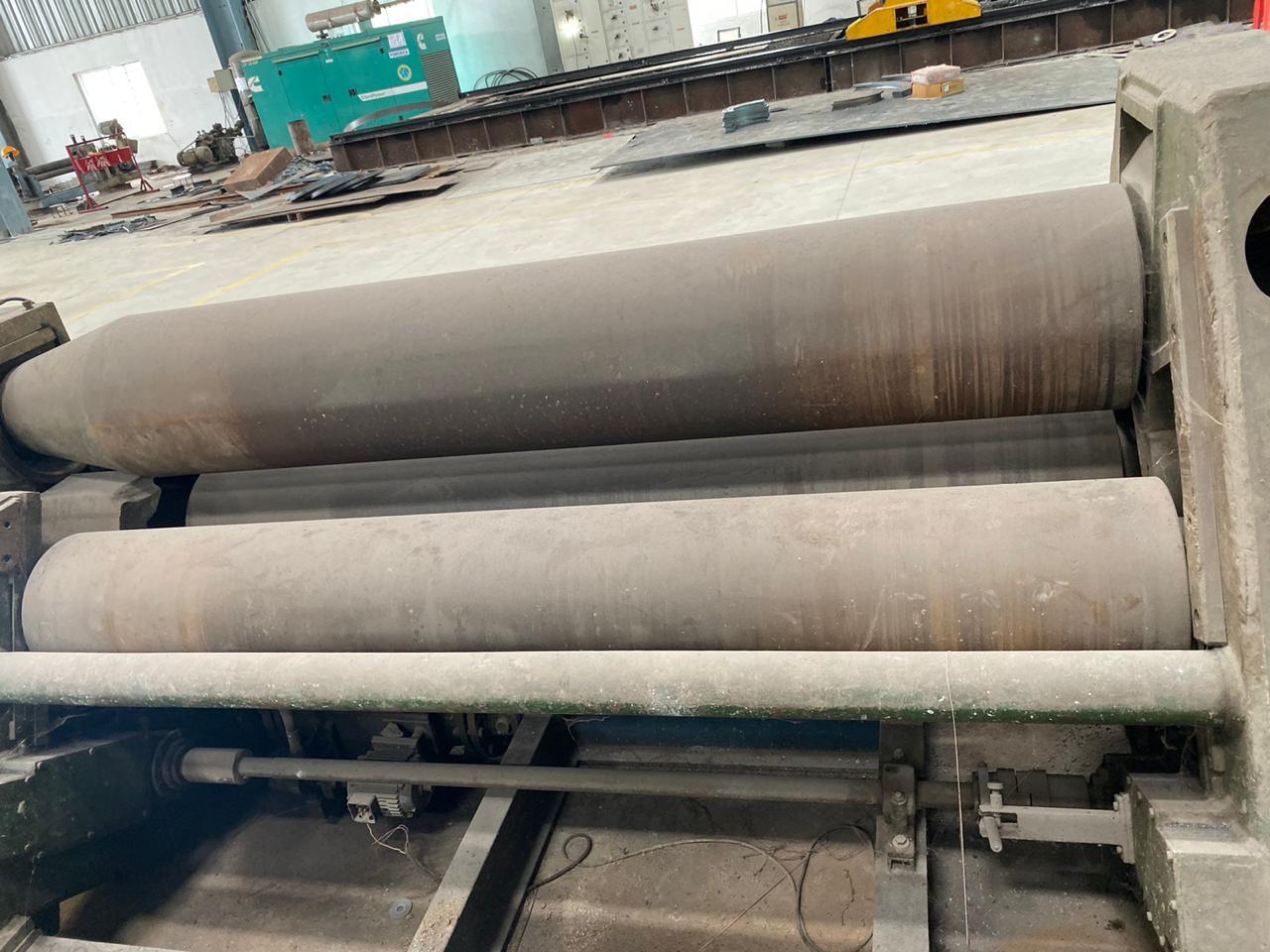

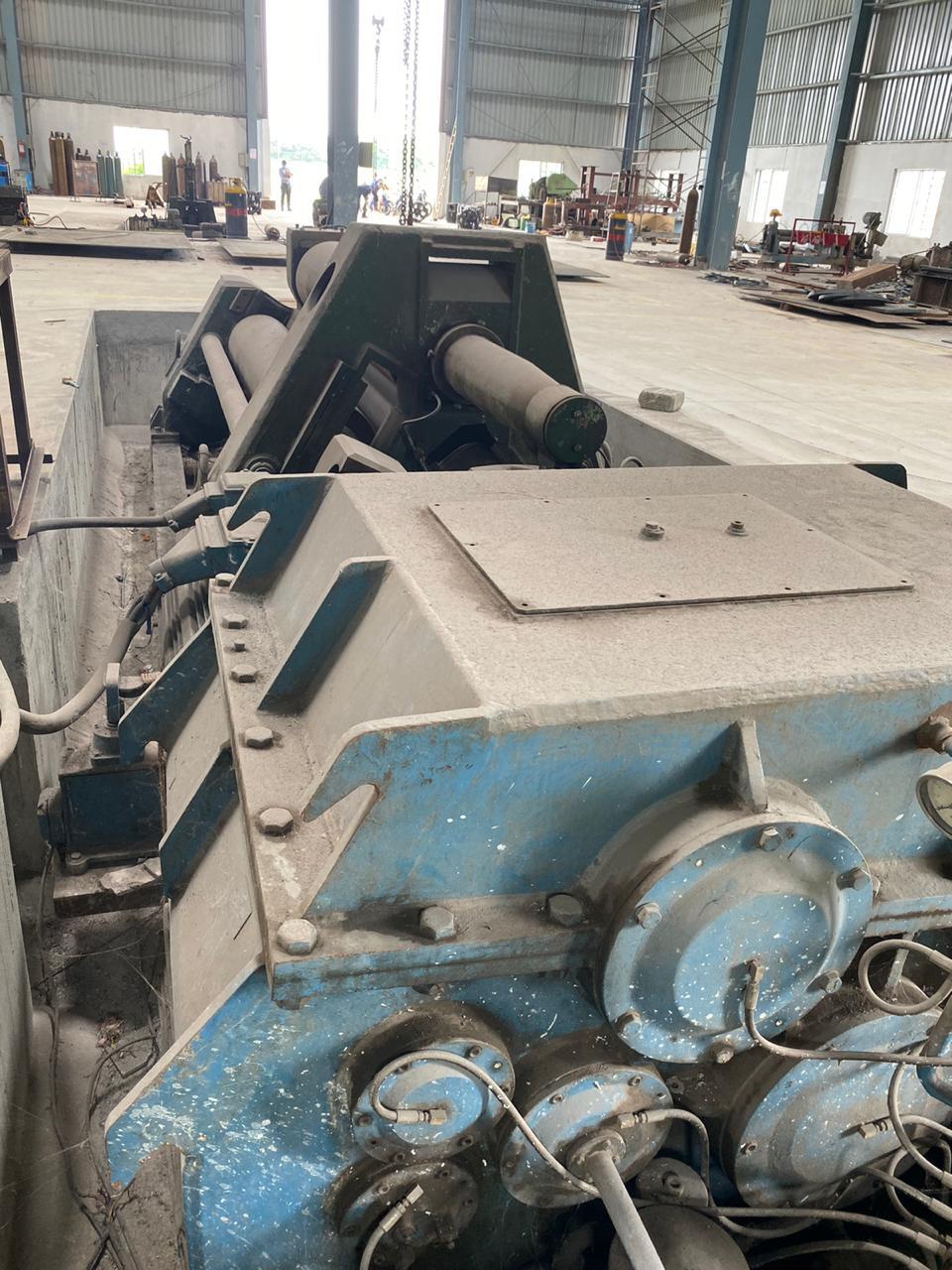

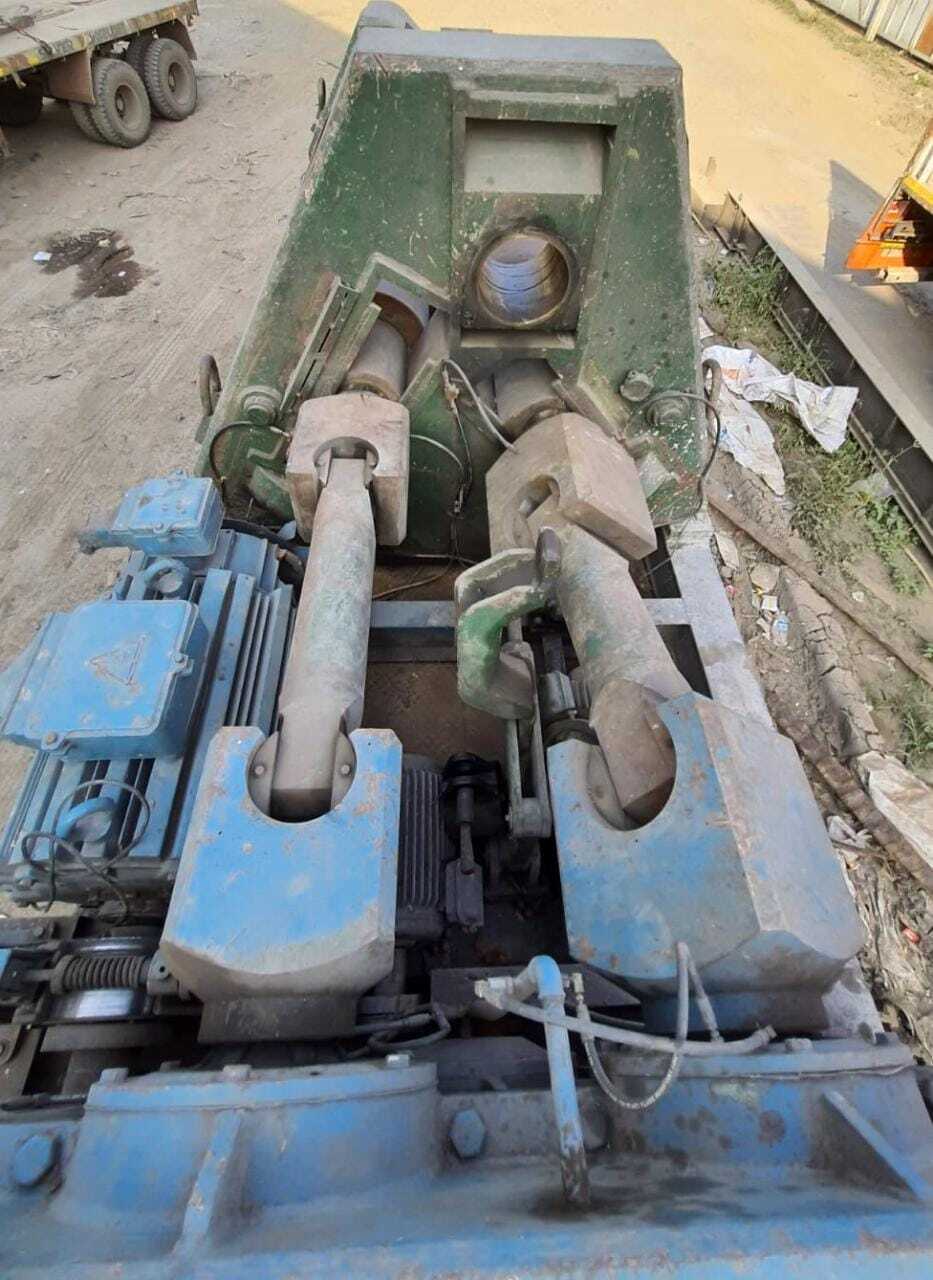

3 roll Plate rolling machine with prepinching

Working width : 3000 mm

Bending capacity 56 mm

Top Roll Diameter : 552 mm

Pinching roll diameter : 510 mm

Bottom Roll Diameter : 470 mm

Mechanical operation

Shell Removal mechanical and hydraulic/

Precision Plate Bending

Achieve consistently accurate bends on mild steel plates with this 3-roll pyramid type machine. Designed for high precision and durability, it enables bending of sheets up to 16 mm thickness and 2,000 mm width, covering a wide range of industrial plate forming needs.

Robust Drive and Control System

Equipped with a gear box-driven mechanism and a manual lever-operated control, this plate rolling machine offers precise manual adjustments for optimal plate bending results. Maintenance is simplified with a grease/oil cup lubrication system, ensuring smooth operation.

High Output, Low Noise Operation

The machine efficiently bends large volumes of sheet and plate at a speed of 6 m/min, with a daily production capacity of up to 6 tons. Its mechanical design keeps noise levels below 70 dB, making it suitable for continuous industrial environments without excessive disturbance.

FAQ's of Plate Roling Machine:

Q: How does the plate rolling process work with this machine?

A: The machine uses three alloy steel rolls arranged in a pyramid configuration to gradually bend mild steel plates. The manual lever system allows precise adjustments for the desired bend radius, supporting angles up to 180 degrees with a minimum radius of 50 mm.

Q: What materials and thicknesses can this machine handle?

A: This plate rolling machine is designed primarily for mild steel plates, with a capacity for thicknesses up to 16 mm and widths up to 2,000 mm. The robust alloy steel rolls provide reliable performance for industrial applications.

Q: Where is this machine typically used?

A: The plate rolling machine is ideal for industrial settings such as fabrication shops, manufacturing plants, and heavy engineering industries where precise plate and sheet bending is required.

Q: When should I use this machine over hydraulic or fully automatic alternatives?

A: This semi-automatic mechanical type machine is best for operations needing high reliability, lower maintenance, and where manual control over the bending process is preferred. It is suitable when the production volume and bend complexity do not require full automation.

Q: What are the benefits of the manual lever-controlled system?

A: Manual lever operation allows for flexible control over bending angles and radii, making the machine versatile for different plate thicknesses and shapes. It also reduces reliance on complex electronics, enhancing machine durability and ease of use.

Q: How do I maintain the machine's lubricating system?

A: Regularly check and top-up the grease or oil cups as needed. This ensures smooth roll movement and prolongs the lifespan of the moving components without requiring advanced maintenance procedures.
